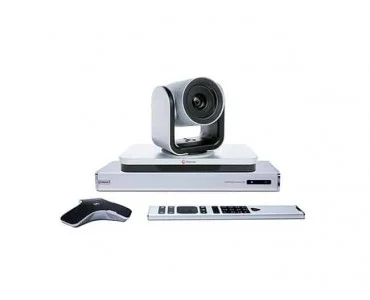

Polycom RealPresence Group 500

• Polycom®EagleEye™ IV or Polycom® EagleEye™ Acoustic camera, codec, cables, remote control, Polycom® RealPresence® Group Microphone Array (with EagleEye IV package only)

• H.261, H.263, H.264 AVC, H.264 High Profile, H.264 SVC, RTV
• H.239/Polycom® People+Content™
• H.263 & H.264 Video Error Concealment

• 1 x EagleEye HD camera (HDCI)
• 1 x HDMI 1.3
• 1 x VGA

• 2 x HDMI 1.3

• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps  from 832kbps
• 720p, 30fps from 512 kbps
• 4SIF/4CIF, 60  fps from 512Kbps
• 4SIF/4CIF, 30 fps from 128Kbps
• SIF (352 x 240), CIF (352 x 288) from 64 Kbps
• QSIF (176 x 120), QCIF (176 x 144) from 64 Kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps

• Input

– HD (1920 x 1080i), HD (1920 x 1080p)
– WSXGA+ (1680 x 1050)
– UXGA (1600 x 1200)
– SXGA (1280 x 1024)
– WXGA (1280 x 768)
– HD (1280 x720p), XGA (1024 x 768)
– SVGA (800 x 600)

• Output

– HD (1920 x 1080i)
– HD (1920 x 1080p)
– WSXGA+ (1680 x 1050)
– SXGA+ (1400 x 1050)
– SXGA (1280 x 1024)
– HD (1280 x 720p)
– XGA (1024 x 768)
– VGA (640 x 480)

• Content frame rate

– 5–60 fps (up to 1080p resolution at 60 fps)

• Content Sharing

– People+Content and People+Content IP

• 1 x RealPresence Group microphone array input port (supporting a total of 2 microphone arrays)
• 1 x HDCI (camera)
• 1 x HDMI
• 1 x 3.5mm stereo line-in

• 1 x HDMI
• 1 x 3.5mm stereo line-out

• 2 x USB 2.0
• 1 x RS-232 Mini-DIN 8-Pin

• 22kHz bandwidth with Polycom® Siren™ 22 technology, AAC-LD (TIP calls)
• 14kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7kHz bandwidth with G.722, G.722.1
• 3.4kHz bandwidth with G.711, G.728, G.729A

• Automatic gain control
• Automatic noise suppression
• Keyboard noise reduction
• Polycom NoiseBlock™ technology
• Live music mode
• Instant adaptation echo cancellation
• Audio error concealment
• Polycom®Siren™ Lost Packet Recovery (LPR™) technology
• Polycom®StereoSurround™ technology

• H224/H.281, H.323 Annex Q, H.225,H.245, H.241, H.239, H.243, H.460
• BFCP (RFC 4582)
• TIP

• IPv4 and IPv6 support
• 1 x 10/100/1G Ethernet
• Auto-MDIX
• H.323 and/or SIP up to 6 Mbps
• Polycom®Lost Packet Recovery™ (LPR™) technology
• Reconfigurable MTU size
• RS232 with API support
• Microsoft® Office Communications Server integration
• Microsoft® ICE support
• Microsoft®Lync® support
• IBM® Sametime™ support

• US DoD UC APL Certified (see the Polycom US Federal Government Accreditation sitefor details)
• Media Encryption (H.323, SIP):AES-128, AES-256
• Authenticated access to admin menus, web interface, and telnet API
• FIPS 140-2 Validated Cryptography (Validation Certificate #1747)
• PKI/Certificate Management:

– SSL 3.0, TLS 1.0, 1.1, 1.2

– Self-signed and CA-signed certificate support

– CRL and OCSP-based certificate revocation checking

• Network intrusion detection system
• Local account password policy configuration
• Security profiles
• Web UI/SNMP Whitelists
• Local account and login port lockout

• Polycom® Touch Control
• Polycom® EagleEye™ Producer
• Polycom® EagleEye™ Director with EagleEye III cameras
• Polycom® UC Board™
• Polycom®SoundStation® IP 7000 conference phone integration
• Polycom®SoundStructure® integration through a digital interface

• Lync 2010 and 2013 interoperability
• TIP interoperability
• 1080p license, providing up to 1080p60 for people and content
• Multipoint license for up to 6 sites at 720p30, or 4 sites at 1080p30

• Auto sensing power supply

• 37VA @ 120V @ 60Hz
• 37VA @ 230V @ 50/60Hz
• Typical BTU/h: 65

• Operating temperature: 0–40°C
• Operating humidity: 15–80%
• Non-operating temperature: -40°–70°C
• Non-operating humidity (non-condensing): 5%–95%
• Maximum altitude: 10,000 ft

• RealPresence Group 500 base box

– 11.3” H x 1.2” W x 4.8” D
– 2.45 lbs
